Revolutionizing Engineering Education: Power Electronics Laboratory with Red Pitaya

Engineering education is advancing rapidly, driven by the need for innovative tools and techniques that bridge the gap between theoretical knowledge and practical application. The Power Electronics Laboratory, powered by the Red Pitaya STEMlab, offers an accessible, low-cost solution that prepares students for real-world challenges in electronics and telecommunication.

Breaking Barriers with Remote Laboratories

Traditional engineering labs often face significant challenges, such as high costs, logistical problems, and ongoing maintenance demands. In response, remote laboratories are emerging as a transformative solution that addresses these limitations. They enable real-time access to experiments, allowing students to interact with actual hardware from virtually anywhere. This flexibility eliminates the need for strict schedules or physical attendance, making learning more adaptable to individual needs. Moreover, remote setups are cost-effective, as a single laboratory configuration can cater to multiple students without additional infrastructure. Beyond convenience and savings, remote laboratories provide invaluable hands-on experience, offering students the opportunity to engage with real-world hardware and gain practical insights into its performance. By using the remote capabilities of Red Pitaya, the Power Electronics Laboratory redefines the traditional learning experience and sets a new standard in engineering education.

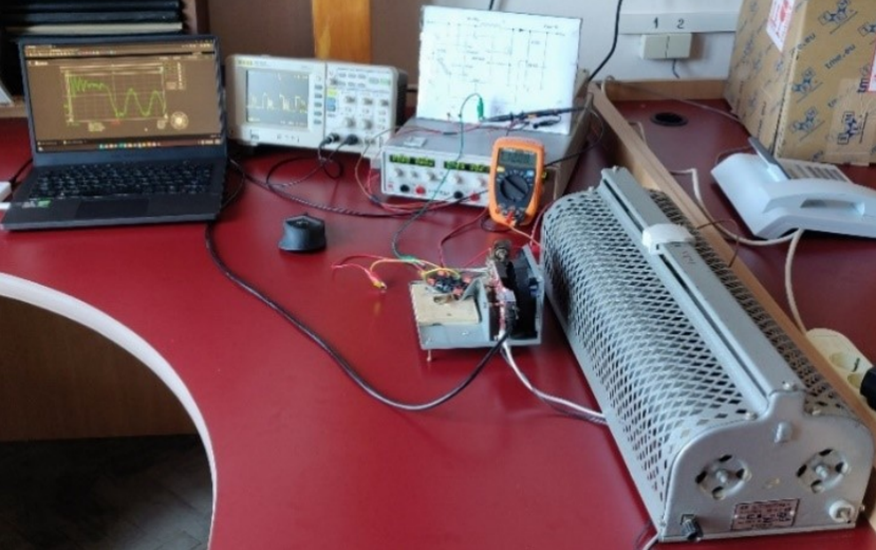

Highlight Project: Step-Up Converter Analysis

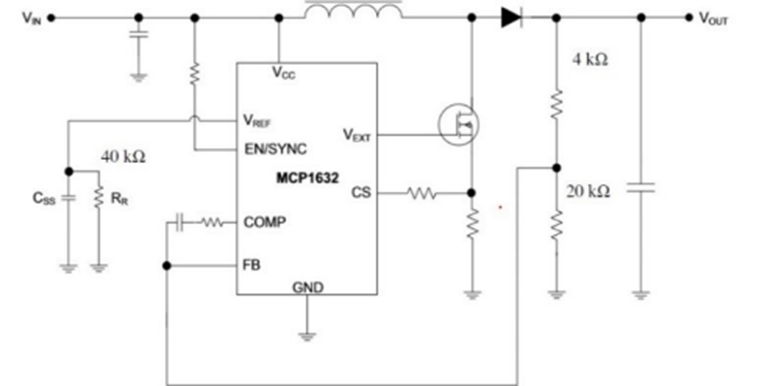

One standout experiment within this lab setup focuses on a step-up converter, a type of DC-DC power converter that increases input voltage. This experiment introduces students to critical concepts in the field of power electronics. The step-up converter analysis uses Red Pitaya's remote oscilloscope and generator applications to explore circuit behavior in detail.

Remote Learning in Action

Remote learning with Red Pitaya can help students to understand and work with advanced concepts and techniques in electronics. Through this platform, they can analyze waveforms, duty cycles, and frequency responses with precision, as well as perform Fourier Transform Spectrum Analysis for both electromagnetic interference (EMI) and pulse-width modulation (PWM) harmonics. Real-time measurements are readily accessible via an intuitive web interface, offering a seamless and user-friendly experience.

For example, the boost converter's output voltage waveform can be captured and visualized remotely, revealing key parameters such as peak-to-peak voltage and RMS values. This detailed examination not only enhances conceptual understanding, but also bridges the gap between theory and practice. Furthermore, the Spectrum Analyzer application provides comprehensive insights into EMI interference and signal harmonics across both kilohertz and megahertz ranges, making it an invaluable tool for students aiming to master real-world applications.

Bridging Academia and Industry

The Power Electronics Laboratory extends its impact beyond students, addressing the critical need to align academic training with the expectations of modern industries. By incorporating remote access and real-world tools, this innovative setup transforms the learning experience. It enhances accessibility to state-of-the-art laboratory environments, equipping students with hands-on skills in power electronics and control systems. Furthermore, it encourages a constructivist learning approach, enabling students to experiment, learn from their errors, and refine their understanding through iterative improvement.

Looking Ahead: Future of Remote Labs

The success of the Power Electronics Laboratory, powered by a Red Pitaya STEMlab, is only the beginning. Future advances are set to expand its potential further by introducing multiplexor kits for simultaneous multi-circuit analysis and developing comprehensive remote labs for both linear and power electronics applications. These innovations promise to make engineering education more inclusive, impactful, and engaging, paving the way for a new era of learning that seamlessly integrates technology and practicality.

Conclusion

The Red Pitaya-based Power Electronics Laboratory exemplifies the potential of remote and virtual laboratories to transform engineering education. With its blend of cutting-edge hardware and user-friendly software, this platform bridges the gap between traditional teaching and modern industry practices, opening up the future for a new generation of skilled engineers.
