# How to Achieve Phase-Coherent Multichannel Data Acquisition at Scale
- Posted by  [Red Pitaya Technical Editorial Team](https://redpitaya.com/Red-Pitaya-Blog-team/) , May 5, 2026
For engineers working on **MIMO communications, quantum control loops, or phased-array radar**, the challenge isn’t just capturing high-speed data—it’s maintaining phase coherence across dozens of channels.
As system complexity grows, traditional "big iron" instrumentation often becomes a bottleneck due to fixed channel counts and high costs. At **Embedded World 2026**, a new modular approach to this problem gained significant attention from the technical press as a viable alternative to $50k+ custom-built racks.
## **The Challenge: Eliminating Jitter in Multi-Board Systems**
When scaling an RF system, the primary enemy is **clock skew and trigger jitter**. If two ADCs aren't sampling at the exact same nanosecond, your phase-sensitive data is compromised.
In a recent technical feature, [**EEWorld Online**](https://www.eeworldonline.com/embedded-world-2026-red-pitaya-gen-2-brings-multichannel-sync-and-faster-streaming-to-modular-instrumentation-2/) highlighted how a modular, software-defined approach is replacing expensive, purpose-built hardware:
*"The ability to 'mix and match' boards into a single coherent system allows labs to scale without the prohibitive costs... \[enabling\] multichannel sync and faster streaming for modular instrumentation."*
## **The "LEGO" Approach to RF Instrumentation: X-Channel System 2.0**

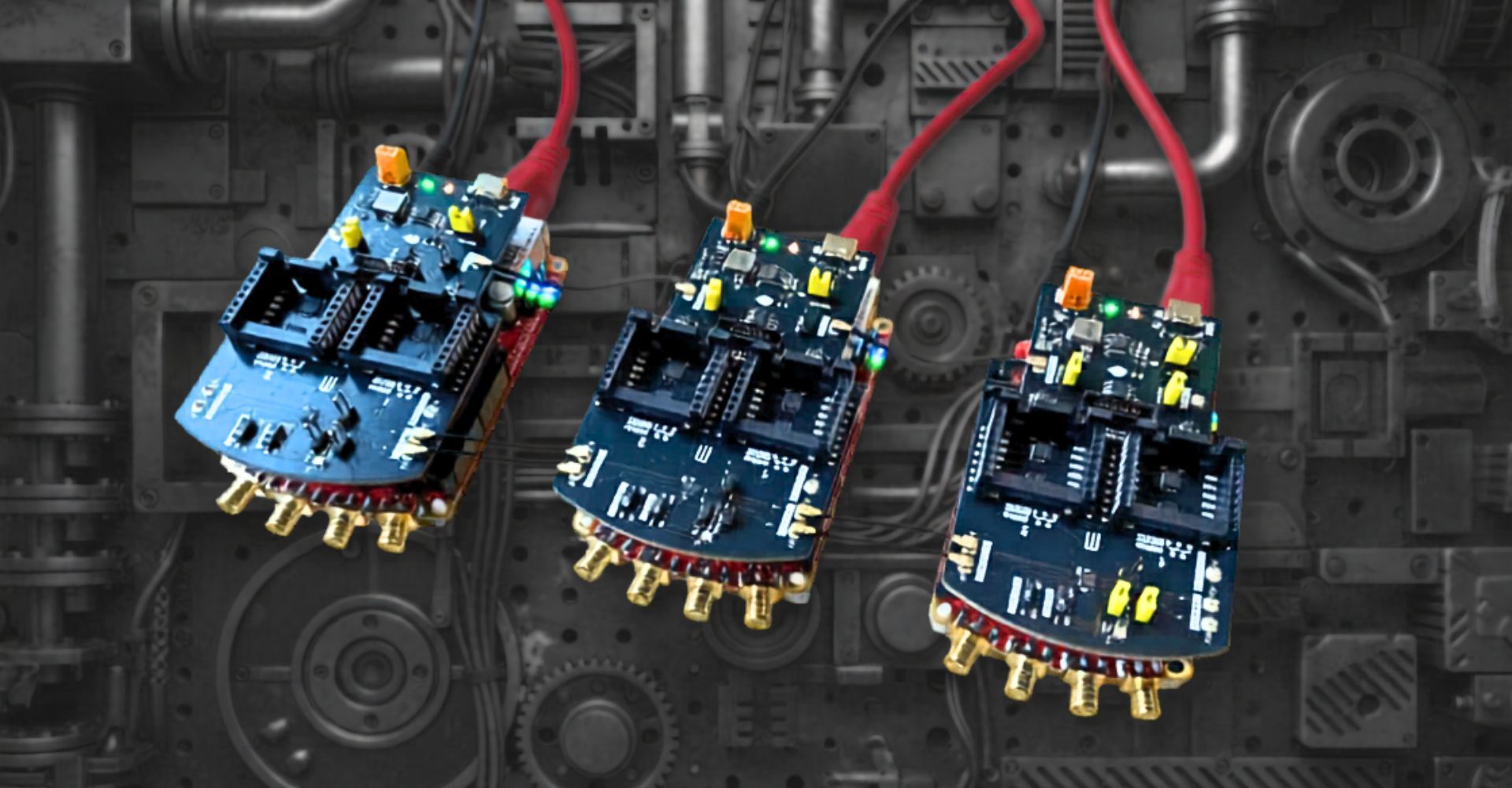

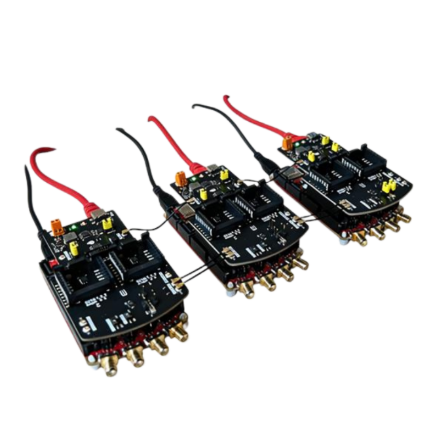

The solution showcased in Nuremberg—officially branded as the [**X-Channel System 2.0**](https://redpitaya.com/product/x-channel-system-2-0)—uses a master-slave clock architecture to transform separate FPGA boards into a single, high-density measurement rig.
Experts at [**Electronic Specifier**](https://www.youtube.com/watch?v=5o6xbys_lsI) and [**DigiKey**](https://www.youtube.com/watch?v=5o6xbys_lsI) noted that this architecture allows engineers to solve three critical problems:
1. **Sync Diverse Hardware:** Combine 2-channel and 4-channel boards (including the [STEMlab 125-14 PRO Gen 2](https://redpitaya.readthedocs.io/en/latest/developerGuide/hardware/GEN2/125-14_Gen2_Pro/top.html) and [SDRlab 122-16 External Clock](https://redpitaya.readthedocs.io/en/latest/developerGuide/hardware/ORIG_GEN/122-16_EXT/top.html)) while maintaining sub-nanosecond alignment.
2. **Achieve High-Throughput Streaming:** Move data at **62.5 MB/s** across the entire synchronized array, a requirement for real-time Edge AI processing.
3. **Industrial Reliability:** As reported by **Embedded.com**, features like the [hardware watchdog](https://www.embedded.com/introduction-to-watchdog-timers) ensure these high-channel systems remain stable in 24/7 industrial deployments.
## **From Quantum Labs to Industrial Edge**
This isn't just theoretical. This technology is already being used in the **world’s largest quantum computer** in Toronto. By using a shared reference clock distributed via **Red Pitaya Click Shields**, researchers can run hundreds of synchronized channels with the same precision as a single-board setup.
This vision of "Industrial Scalability" has been echoed across global media, with technical news reaching major networks including [**AP News**](https://apnews.com/press-release/ein-presswire-newsmatics/red-pitaya-unveils-expanded-multichannel-synchronization-and-high-speed-streaming-at-embedded-world-f3a286351f8abf7130d9444cdaa5cbf8), **Bloomberg**, and the **USA TODAY Network**.
## **The Verdict: Scalability Without Compromise**
If you are currently facing a "channel-count ceiling," the consensus from the industry experts is clear: **Software-defined, modular synchronization is the most cost-effective path to high-performance RF scaling.**
This modular approach was a highlight of the DigiKey Tech Bench at Embedded World 2026, where experts from Electronic Specifier confirmed that the 62.5 MB/s streaming and phase alignment are "essential" for next-gen Edge AI.
Ready to build a phase-coherent system? 👉 [Explore the X-Channel System 2.0 ](https://redpitaya.readthedocs.io/en/latest/appsFeatures/multichannel/multichannel.html#x-channel-2-0-click-shield-synchronisation)
---
## **FAQ: High-Channel RF Synchronization**
### **How do you synchronize multiple FPGA-based ADCs?**
To achieve sub-nanosecond alignment, you must distribute a **shared reference clock** and a **common trigger** across all boards. If ADCs are not aligned with deterministic timing and low jitter, phase-sensitive measurements will degrade. Systems like the X-Channel 2.0 use LVDS clock fanout buffers to ensure every ADC in the array of samples simultaneously.
### **What is phase-coherent data acquisition?**
Phase coherence means that multiple signals are captured with a fixed and known phase relationship. This is essential for applications like beamforming and direction finding, where the relative timing between channels carries the signal's intelligence.
### **What are the benefits of modular RF instrumentation over traditional oscilloscopes?**
Modular systems allow you to pay only for the channels you need. You can start with a 2-channel setup and scale to 16, 32, or 64 channels by simply adding more boards to the synchronized cluster, significantly reducing the Total Cost of Ownership (TCO).
### **Is it possible to automate this setup with Python?**
Absolutely. The entire system is built on an open-source software stack, allowing you to control the entire synchronized array via Python or MATLAB for automated testing, data logging, and real-time analysis.
### About the Red Pitaya Team
The Red Pitaya Technical Editorial Team is a cross-functional group of technical communicators and product specialists. By synthesizing insights from our hardware developers and global research partners, we provide verified, high-value content that bridges the gap between open-source innovation and industrial-grade precision.
Our mission is to make advanced instrumentation accessible to engineers, researchers, and educators worldwide.
